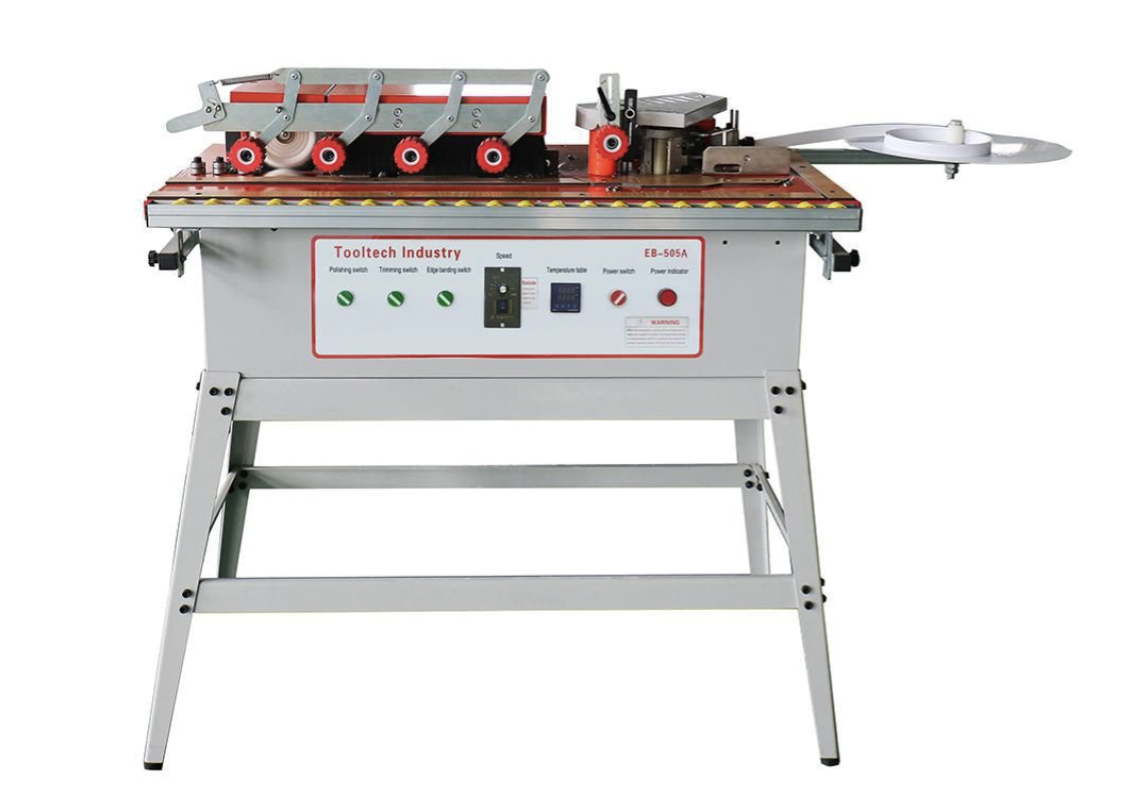

EB-505A Edge Bander

Specifications:

• Voltage: 110V

• Phase: Single-Phase

• Power: 2,000W

• Heating Time: 5-8min.

• Glue Capacity: 1,000ml

• Edge-Sealing Height: 7-60mm

• Edge-Sealing Speed: 0-6m/min.

• Edge Band Thickness: 0.3-3 mm

• Trimming Thickness: 0-4 mm

• Belt-Breaking Mode: Foot Pedal

• Net Weight: 175lbs.

• Size: 40 x 22 x 27

• Medium Temperature Glue: adjust to 150-170ºC

Features:

• Microcomputer Meter Control

• Automatic Tape Breaking and end cutting

• Double-Sided Trimming + Polishing (top + bottom)

• Linear Trimmer + Cutter

• Able to trim redundant edge-sealing band

• Equipped with a Dust Collector

Details:

The EB-505A edge bander model is equipped with its own Trimmer, Buffer, and a Dust Collector conveniently located below the trimmer for easy clean-up. Its notable features include a Microcomputer Meter Control, with feed and edge banding speed adjustments. It offers automatic tape breaking and end cutting (via alloy cutter), including double-sided trimming and polishing on both upper + lower sides, greatly improving work efficiency. Utilizing medium heat glue pellets, its large pot capacity allows for greater workflow and seamless productivity.
