Specifications:
Number of Spindles: 23
32mm Center-to-Center Distance between Spindles (First & Last Drill = 27.7”)
Maximum Drilling Depth: 2.5"
Maximum Distance from Edge of the Board with a Head: 12”
120" Line Boring Fence with 4 Stops
2 HP Motor, 220V/3Ph./60Hz./3400rpm with Overload Protection
3 Pneumatic Hold Downs
Pneumatic Foot Pedal
Operating Pressure of 80-100psi
Includes 23 Quick-Change Adapters
Accepts 10mm Shank Drill Bits
Net Weight: 816lbs.
Detentions: 56” x 40” x 46” Height
Crated Weight: 882lbs.
Crated Dimensions: 61” x 44” x 50” Height
Details:

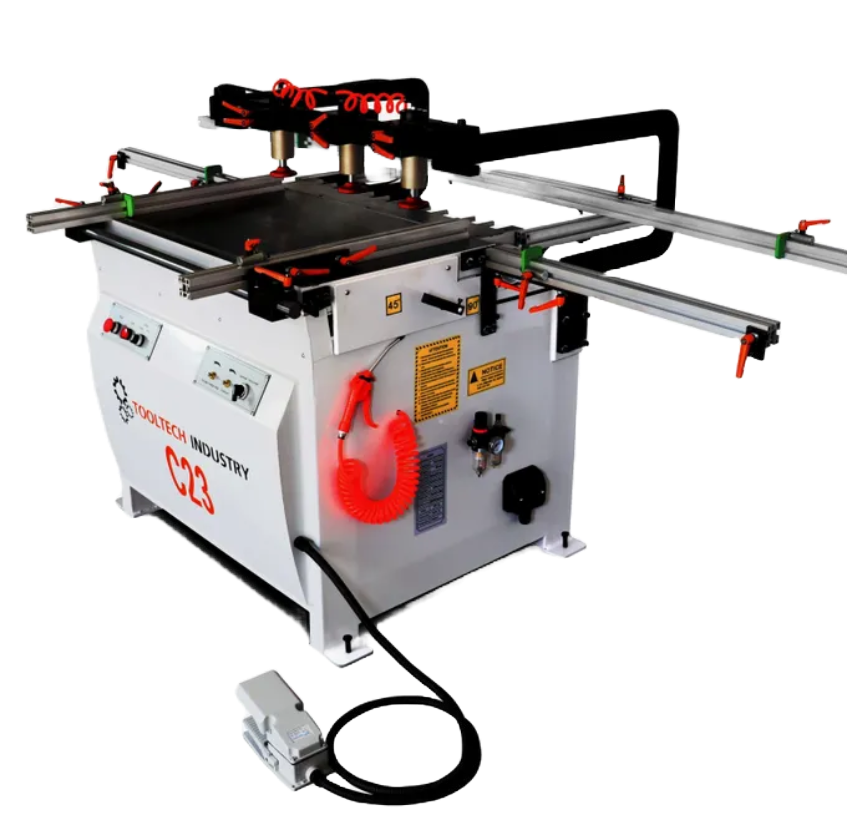

Tooltech’s C23 provides features that offer longer life, such as an operating pressure of 80-100psi and 23 quick-change adapters. With a 2HP motor (versus standard 3/4HP in most models) and stainless-steel spindles replacing steel spindles, Tooltech's C23 offers carpenters and woodworkers the opportunity to work with the most innovative construction line boring machine currently on the market.
