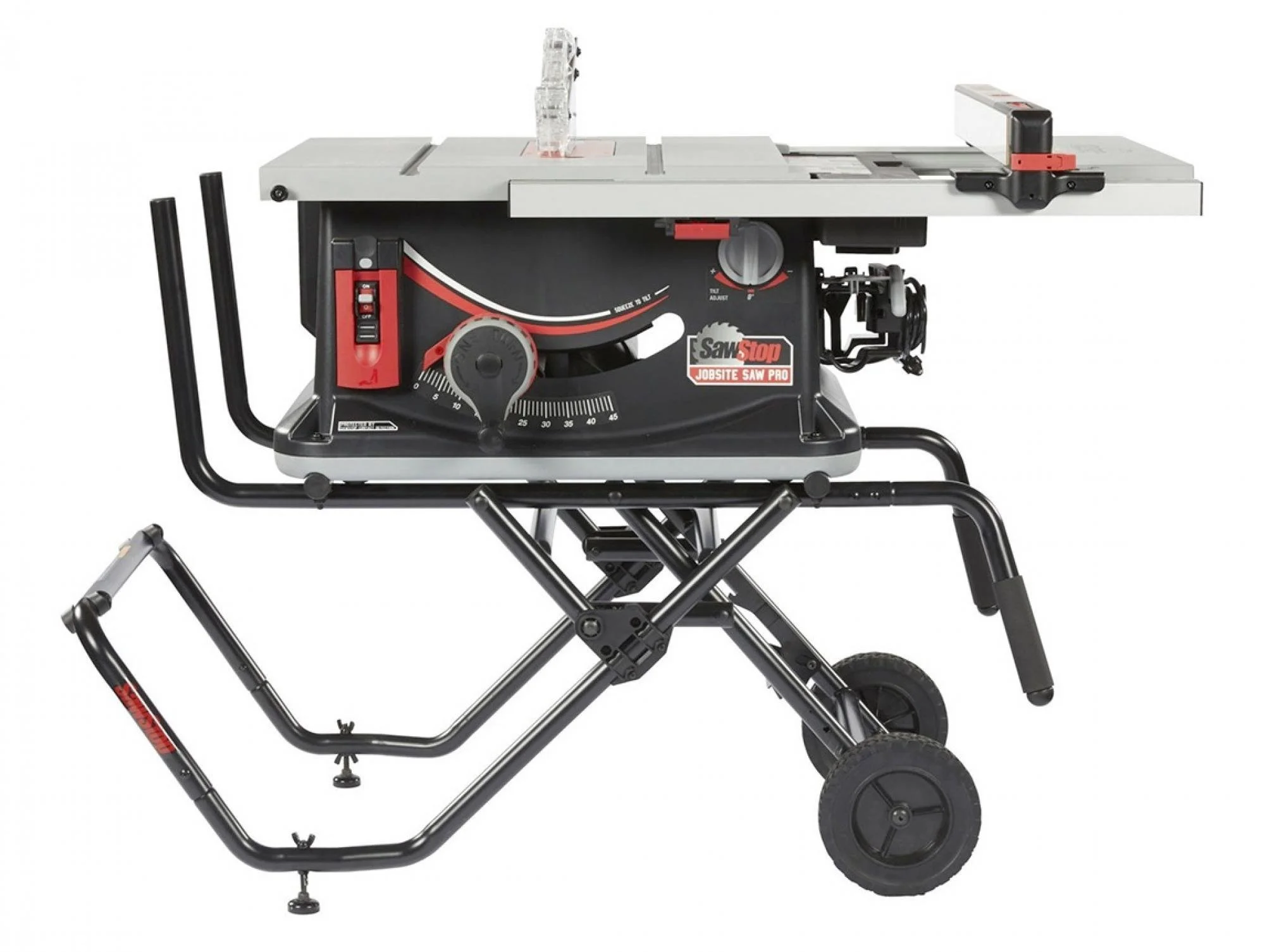

JOBSITE SAW PRO

$1,699.00

Features

  • Stowed Dimensions: 26 1/2" L x 29" W x 45" H

  • Class-Leading Table Depth: 24 5/8” table depth allows a larger surface to make safe and accurate cuts from

  • One-Turn Elevation: Raise and lower the blade in just one turn on the handwheel

  • Solid Hi-Low T-Style Fence with Ergolock: Slides easily and locks firm with the push of the innovative Ergolock. 25 1/2” rip capacity

  • Active Dust Collection Blade Guard: Captures above table dust, helping to ensure a safer and cleaner workspace

  • Internal Dust Collection Shroud: Designed to provide superior dust collection capabilities.

  • Easy Mobility: Simple, intuitive action extends the Mobile Cart for use and collapse the cart for transport

  • Two year warranty with saw registration.

  • Jobsite Saw PRO with Mobile Cart Assembly -15A,120V,60Hz

Specifications

Motor Configuration: 120 VAC 60 Hz, Universal

Amperage: 15A

Cord Length: 116"

Motor Continuous HP: 1.5 HP

Motor Peak HP: 4 HP

Blade Diameter: 10"

Dado Diameter: 8"

Dado Max. Width: 29/32”

Bevel Angle Range: -1 to 46

Max. Depth of Cut, Blade at 0º: 3-1/8"

Max. Depth of Cut, Blade at 45º: 2-1/8"

Max. Rip Right of Blade (Extended): 25-1/2"

Max. Rip Left of Blade: 9-3/4"
