Features

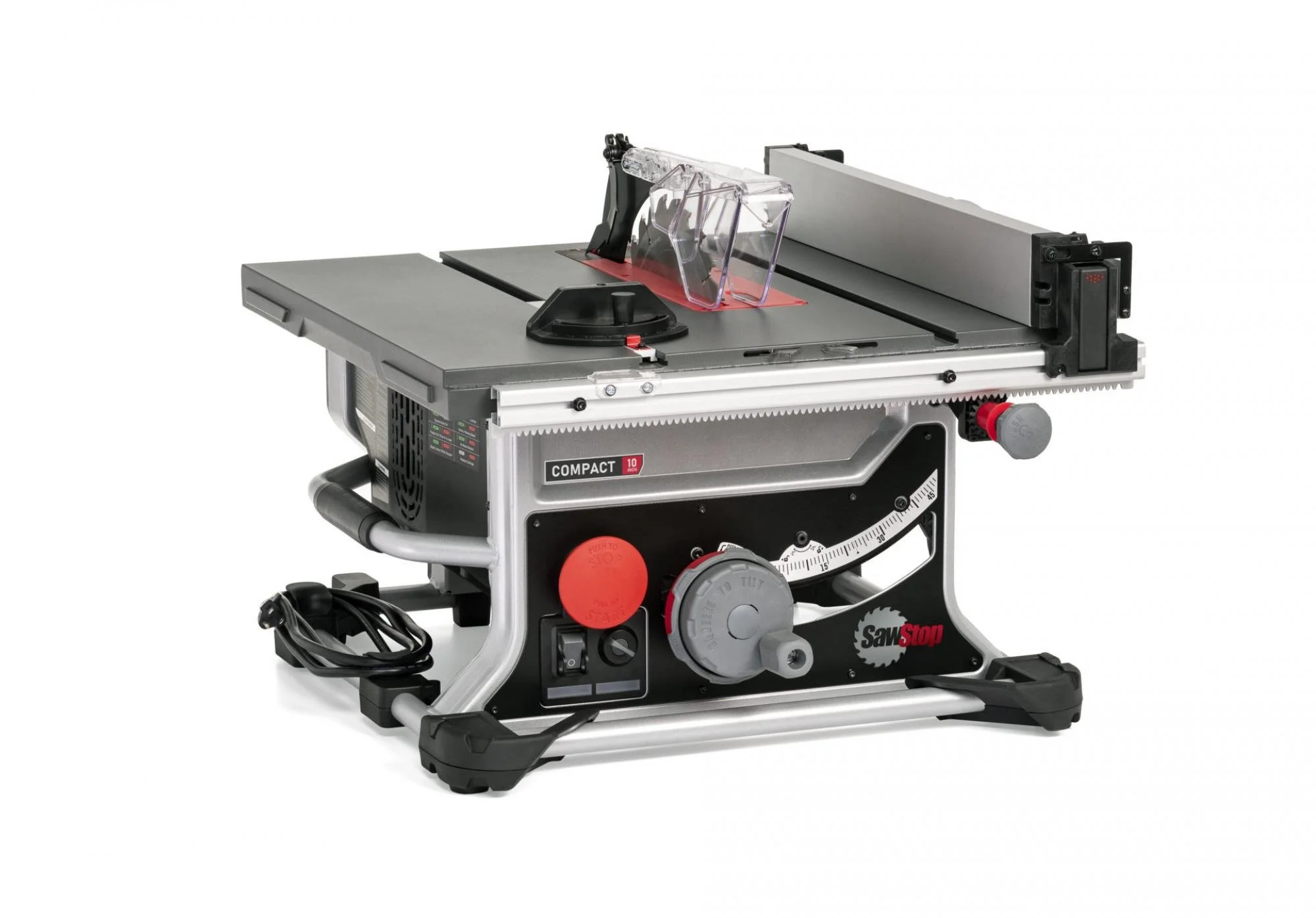

Exclusive-to-SawStop micro-adjust feature allows you to get the most precise cutting angles possible on a job site
Solid Hi-Low Rack & Pinion Fence: Ensures reliably accurate cuts while supporting wide rips up to 24 1/2”.
Rigid tube structure and rubber feet provide a durable, stable cutting experience
10" blade for greater depth of cut
On-saw storage compartment so you have all the tools you need close at hand
Compact and portable for easy travel to any job site
SawStop Safety System stops on contact with skin
Standard-width miter slot
Optional folding stand available
Two year warranty with saw registration
Specifications
Motor Configuration: 120 VAC 60 Hz, Universal
Amperage: 15A
Blade Diameter: 10" (not compatible with Dado blades)
Max. Depth of Cut at 0°: 3 1/8"
Max. Depth of Cut at 45°: 2 1/8"
Max. Rip, Right of Blade: 24 1/2"
Max. Rip, Left of Blade: 9 1/2"
Features
Exclusive-to-SawStop micro-adjust feature allows you to get the most precise cutting angles possible on a job site
Solid Hi-Low Rack & Pinion Fence: Ensures reliably accurate cuts while supporting wide rips up to 24 1/2”.
Rigid tube structure and rubber feet provide a durable, stable cutting experience
10" blade for greater depth of cut
On-saw storage compartment so you have all the tools you need close at hand
Compact and portable for easy travel to any job site
SawStop Safety System stops on contact with skin
Standard-width miter slot
Optional folding stand available
Two year warranty with saw registration
Specifications
Motor Configuration: 120 VAC 60 Hz, Universal
Amperage: 15A
Blade Diameter: 10" (not compatible with Dado blades)
Max. Depth of Cut at 0°: 3 1/8"
Max. Depth of Cut at 45°: 2 1/8"
Max. Rip, Right of Blade: 24 1/2"
Max. Rip, Left of Blade: 9 1/2"
