Description:

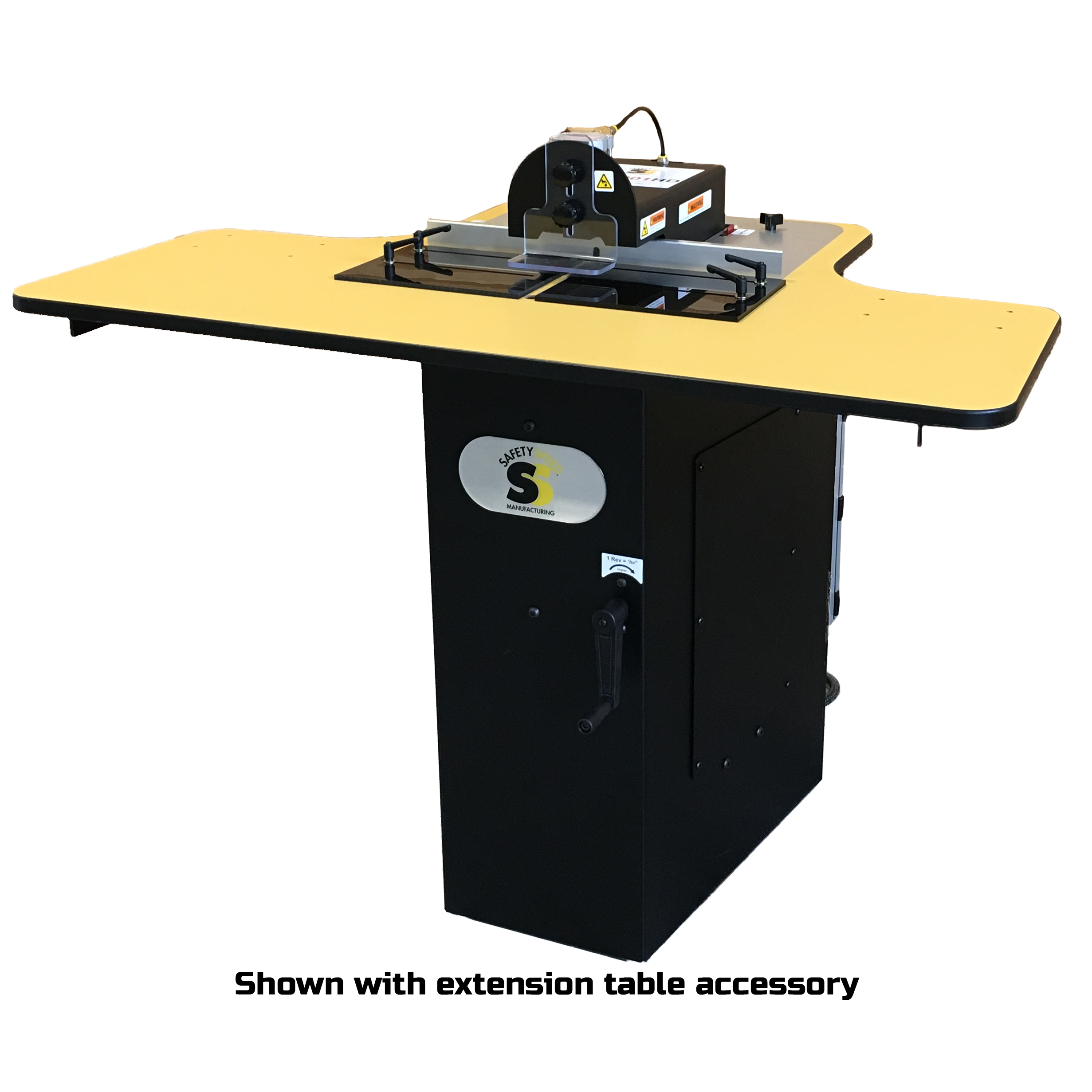

Pocket-hole joinery for high production woodworkers made easy with our SPM301HD Screw Pocket Machine. This machine allows for simultaneously drilling a pilot hole and machining a screw pocket in under a second.
Key enhancements on the SPM301HD from the SPM301 Screw Pocket Machine are:
A spindle motor just like the ones in a CNC machine, running continuously with minimal maintenance
An air drill replacing a router motor
A two-in-one motion simultaneously drills a six degree pilot hole and machines a screw pocket in under a second on most wood species. The SPM301HD features a heavy-duty, direct drive continuous electric spindle motor, allowing for continuous pocketing production.
The SPM301HD features a heavy-duty, direct drive continuous electric spindle motor for those jobs that just keep on coming. Unlike others of its kind, the SPM301HD features cam-driven action providing fast, smooth cutting action under complete mechanical control throughout the machine cycle. The new pilot air drill and end mill produce superior low-angle 6 degree screw pockets. Requires standard 220V and 6.2 CFM at 90 PSI based on 25% load factor, 25% duty cycle.
