Description:

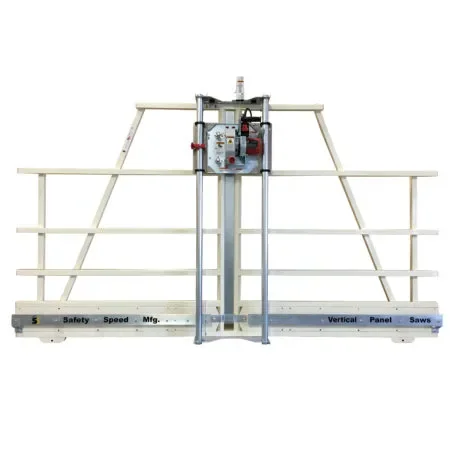

Featuring a 10′ frame, and 50″maximum crosscut with an unlimited rip cut, this panel saw is a preferred solution for cutting 4′ X 8′ sheets of plywood. The H4 panel saw cuts within 1/32″ on a wide variety of panel materials up to 1¾” thick.
The H4 offers full-sized vertical panel saw productivity in economical machines. H-Series saws are used in all kinds of panel processing applications.
Standard Equipment:
3 ¼ Hp, 15 amp industrial duty saw motor.
Zinc plated 1 ¾”steel guide tubes.
4 Nylatron roller bearing systems.
Adjustable vertical and horizontal rulers.
Quick change from vertical to horizontal cutting.
Thin material pressure guard.
Injection-molded plastic material rollers.
Spring loaded counter balance system.
Integrated dust collection bonnet.
Extended warranty.
TUV certified to UL/CSA standards
