Standard Features:
23-Spindle Gear Driven Drill Head on 32mm Centers
(12) Right Hand, (11) Left Hand
10mm Bored Female Collets With Set Screw Lock
0-2" Adjustable Boring Depth
0-3" Height Adjustment
(2) End Boring Fences
(4) 2.00" Bore Clamping Cylinder
Carriage Adjusting Jack
(1) Emergency Stop Button
Foot Actuated Boring Cycle
Tooling Not Included
Technical Data and Specifications:
Drive Motors: 3 HP
RPM: 3,450
Spindle Centers: 32mm
Collet Size: 10mm
Maximum Material Thickness: 2.125"
Electrical: 230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A
Air: 2 CFM at 80 – 100 PSI
Work height: 33.5″
Footprint: 49″ x 48″
Table Area: 20″ x 42″
Description:

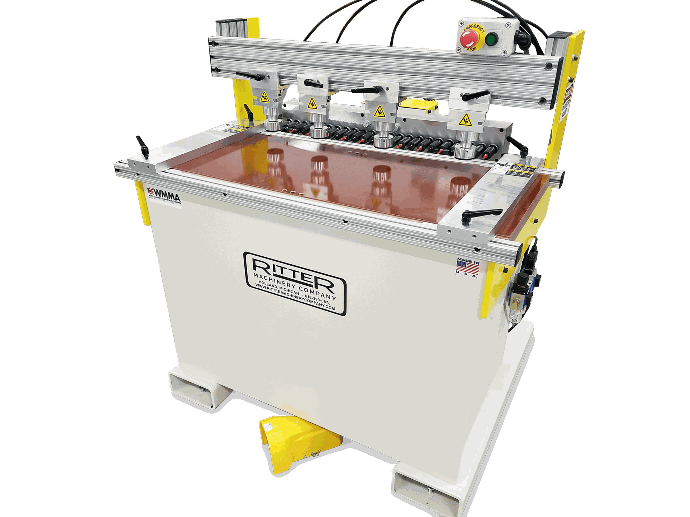

The Ritter R823 is a robust, 23 spindle horizontal borer, designed to be used as a supplemental borer for CNC nested based router and point-to-point borer applications, producing clean and accurate drilling of wood components. The workpiece is held firmly against the table by a pneumatic clamps, and there is full adjustability of the index stops, bed height, and depth of cut.
