Standard Features:
6' X 12' Vertical Assembly Easel
17° Easel Angle
(10) Universal Clamping Cylinders & Manifold
Squaring Bars on Left and Right Sides
(4) Material Hold Down Dogs
(3) Adjustable Material Positioning Stops
2" Cylinder Position Grid Pattern
3" Bore Clamp Cylinder Housing
Heavy Duty Steel Frame
Perforated Steel Table
12 port Manifold with 1/4" NPT Regulator/Gage
Adjustable pressure from 20 to 130 PSI
Foot Treadle
Technical Data and Specifications:
Usable Table Area: 139" x 70"
Work Height: 16"
Footprint: 144" L x 27" D x 85" H
Electrical: N/A
Air: 80-100 PSI
Description:

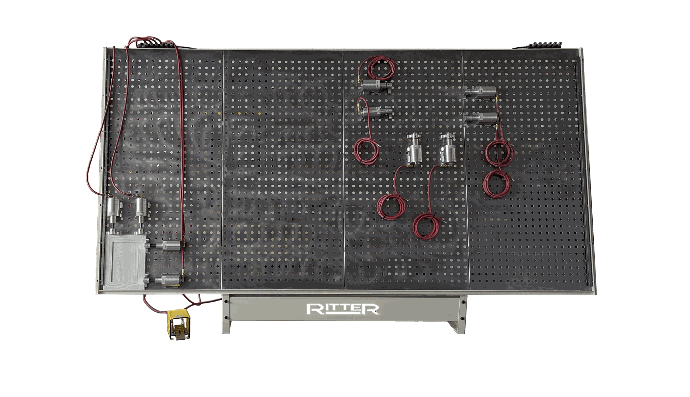

The Ritter R300V is designed for high and low volume production requirements. The R300V is the largest version of our heavy duty cabinet door clamping tables. In this system the operator is freed from the task of managing individual bar or pipe clamps, and instead, uses pneumatic clamp cylinders to apply pressure to the glue line. Each cylinder is easily operated by a slide toggle, and the entire system is activated by a foot pedal. The vertical easel allows for fast and square assembly. The multiple pneumatic clamps ensure high clamping pressures on the piece.
