Standard Features:
6° Low angle
PLC controlled cycle
Foot pedal operated
Adjustable Material Stops
Up to 2″ thick material
Cycle Time: 1.75 – 2 Sec
Tooling Included
Technical Data and Specifications:
Router Bit: 3/8” Solid Carbide, Rough Mill
Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
Router: 24,500 RPM, 11 A, 1.75 HP
Drill: 31,000 RPM, 4.5 A, 7/8 HP
Electrical: 110V 15A
Air: 2 CFM at 80 – 100 PSI
Work height: 36″
Footprint: 27.75″ x 20.5″
Table Area: 15.75″ x 23.75″
Dust Port: 4″
Description:

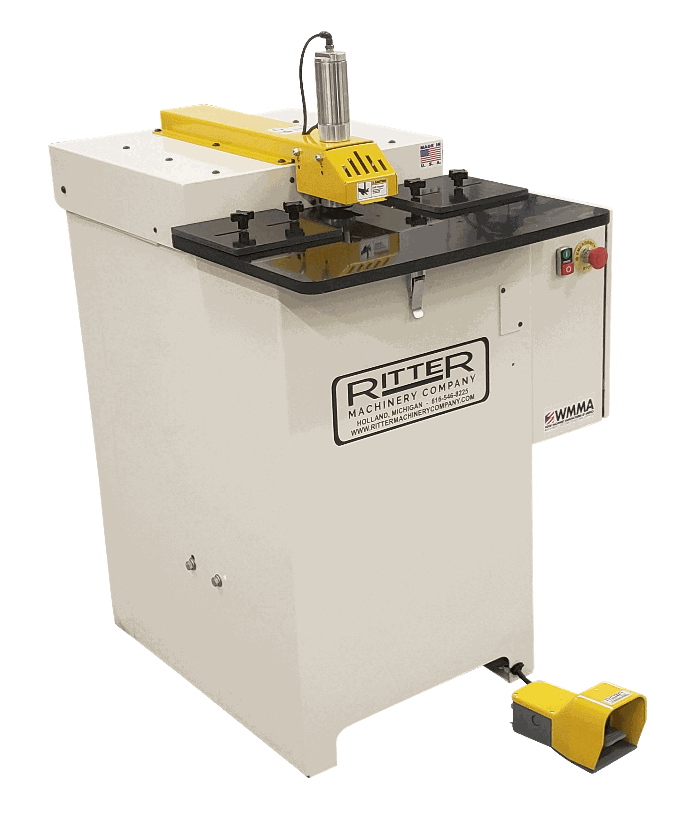

The Ritter R2061 Low Angle Pocket Cutter is an essential tool for crafting precise pocket holes in cabinet face frame assembly. Its innovative design, featuring a low 6° angle, serves to dramatically reduce joint misalignment during assembly, ensuring a seamless and strong connection by enabling the screws to draw the pieces together with greater precision. This model represents a significant advancement in woodworking productivity. By eliminating the need for dowel boring, dowel and glue insertion, protracted clamping, and the common issue of joint misalignment, it delivers a remarkable up to 50% reduction in frame construction time. This means faster, more efficient work and a substantial increase in overall productivity. The R2061 is not only a productivity powerhouse but also incredibly user-friendly. With its single-touch foot pedal operation, it simplifies the machine's use, making it accessible and intuitive for operators of all skill levels. This seamless operation further enhances its appeal, as it can be effortlessly integrated into your woodworking process.
Standard Features:
6° Low angle
PLC controlled cycle
Foot pedal operated
Adjustable Material Stops
Up to 2″ thick material
Cycle Time: 1.75 – 2 Sec
Tooling Included
Technical Data and Specifications:
Router Bit: 3/8” Solid Carbide, Rough Mill
Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
Router: 24,500 RPM, 11 A, 1.75 HP
Drill: 31,000 RPM, 4.5 A, 7/8 HP
Electrical: 110V 15A
Air: 2 CFM at 80 – 100 PSI
Work height: 36″
Footprint: 27.75″ x 20.5″
Table Area: 15.75″ x 23.75″
Dust Port: 4″
Description:
The Ritter R2061 Low Angle Pocket Cutter is an essential tool for crafting precise pocket holes in cabinet face frame assembly. Its innovative design, featuring a low 6° angle, serves to dramatically reduce joint misalignment during assembly, ensuring a seamless and strong connection by enabling the screws to draw the pieces together with greater precision. This model represents a significant advancement in woodworking productivity. By eliminating the need for dowel boring, dowel and glue insertion, protracted clamping, and the common issue of joint misalignment, it delivers a remarkable up to 50% reduction in frame construction time. This means faster, more efficient work and a substantial increase in overall productivity. The R2061 is not only a productivity powerhouse but also incredibly user-friendly. With its single-touch foot pedal operation, it simplifies the machine's use, making it accessible and intuitive for operators of all skill levels. This seamless operation further enhances its appeal, as it can be effortlessly integrated into your woodworking process.
