Description:

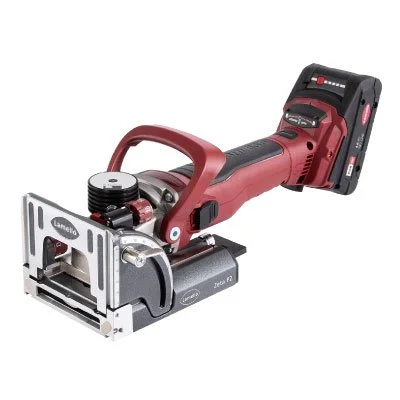

The Zeta P2 Cordless is the profile biscuit joiner for the P-System. It can be used to join components in solid wood, plywood, MDF, particleboard, plastics, solid surface, and more.
The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 cordless is the centerpiece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.
The Zeta P2 cordless can cut P-System grooves for connectors with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.
Function:
The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process precision and reliability with a low-wear, fully mechanical construction.
The Zeta P2 cordless can also be employed as a standard biscuit joiner for original biscuits by deactivating the profile groove function and changing to a 4mm blade.
What’s Included:
Zeta P2 cordless
2 batteries 18V, LiHD 4.0 Ah
Charger
P-System cutter, diamond tipped
Stop square
Suction stub 36 mm
Angle disc
Spacer plate 2 mm
Spacer plate 4 mm
Tool set
P-System drill jig incl. drill
Dust bag
Lamello Systainer3
